SmartCare Pre Apply HDPE 80

System Description:

SmartCare Pre-Apply HDPE 80 is a multi-layer composite waterproofing membrane made of high-density polyethylene. It incorporates a PE film, self-adhesive polymer layer, and particulate layer, making it ideal for pre-applied below-grade waterproofing systems.

Key Features

Continuous Concrete Bond: The membrane creates a continuous adhesive bond to the poured concrete, ensuring it stays firmly attached to the structure.
Settlement Resistance: The product is unaffected by ground settlement, maintaining its integrity even as the soil beneath shifts.
Multi-Barrier Protection: It provides an effective barrier against water, moisture, and gas, protecting the building from various environmental elements.
Construction Ready: The surface is ready for the placement of reinforcement bars immediately after installation, facilitating a faster construction process.
Soil Chemical Resistance: It offers excellent chemical resistance to a wide range of soil types, preventing degradation from underground conditions.
Acid and Alkali Resistance: The membrane is resistant to acids and alkalis, ensuring long-term durability in chemically aggressive environments.

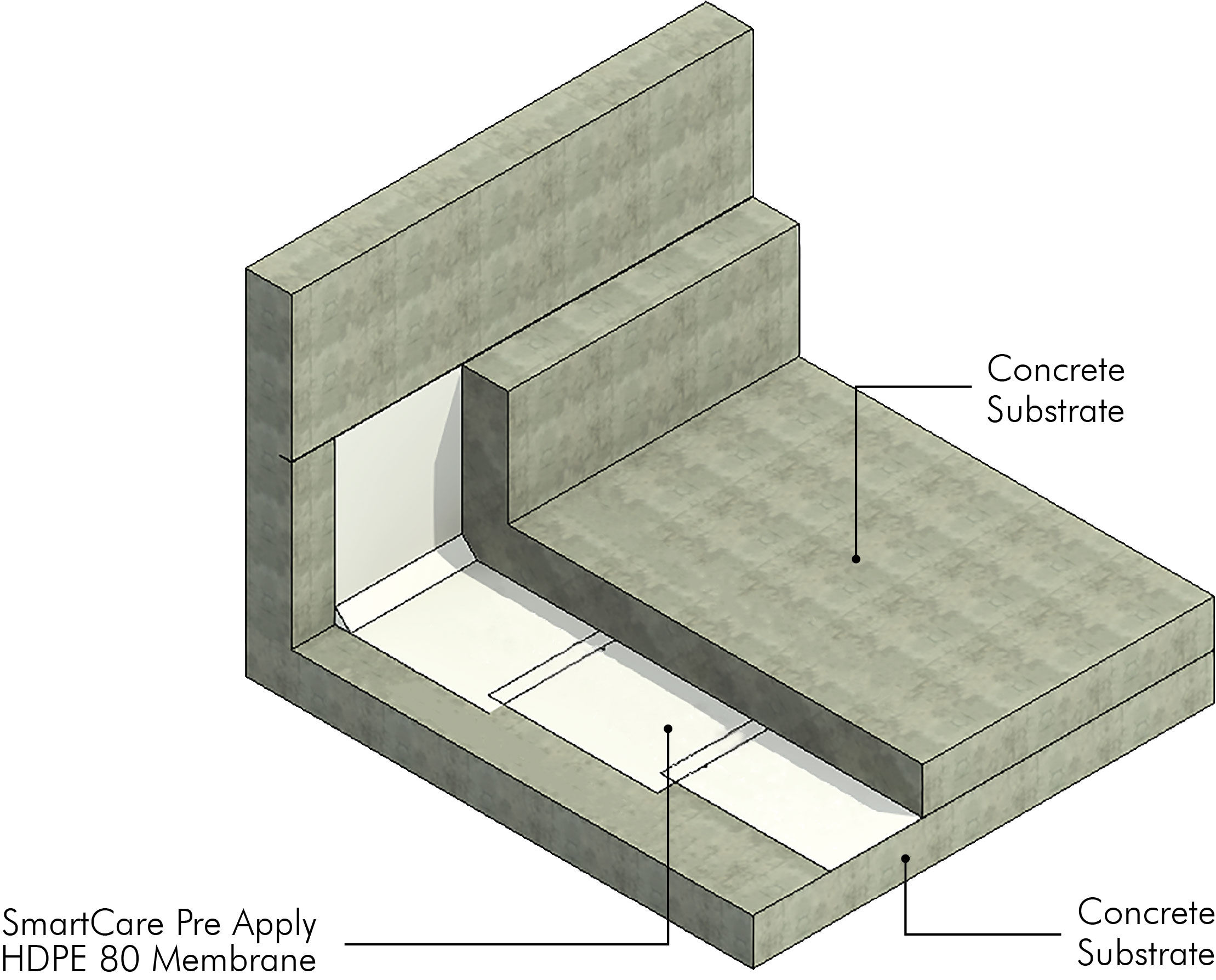

/content/dam/professionals/images/system/HDPE Membrane System (SmartCare Pre Apply HDPE 80).jpg

System Properties

Off White/ White Marsh

Colour

Longitudinal >672% & Transverse >660%

Elongation(ASTM D 412-2016)

Longitudinal 28.9 & Transverse 26.5

Tensile strength, film(ASTM D 412-2016)

1.2mm

Thickness

268 mm/μm

Tear resistance(ASTM D 1004)

No leakage at 7 bar

Resistance to hydrostatic head (ASTM D 5385)

1028 N

Puncture resistance(ASTM E154)

>2000 N/m

Lap peel adhesion(ASTM D 1876-2017)
