SmartCare BituQuik CXL

SmartCare BituQuik CXL

System Description:

SmartCare BituQuik CXL is a heavy-duty SBS-modified self-adhesive waterproofing membrane laminated onto a cross-laminated HDPE film. It delivers a continuously bonded, impermeable waterproofing solution for demanding building and infrastructure applications.

Key Features

  • High Mechanical Strength: Features superior tensile strength, alLowing the membrane to withstand significant structural stress without failing.
  • Thermal Stability: Designed with improved heat stability, ensuring the material maintains its integrity and performance even in high-temperature environments.
  • Puncture and Tear Resistance: Offers good resistance to tearing and punctures, providing a robust shield against accidental damage during or after installation.
  • Low-Temperature Flexibility: Maintains good flexibility even at Low temperatures, preventing the membrane from becoming brittle or cracking in cold climates.
  • UV and Weather Resistance: Provides excellent resistance to Weathering and ultraviolet (UV) radiation, making it durable for long-term exposure to the elements.

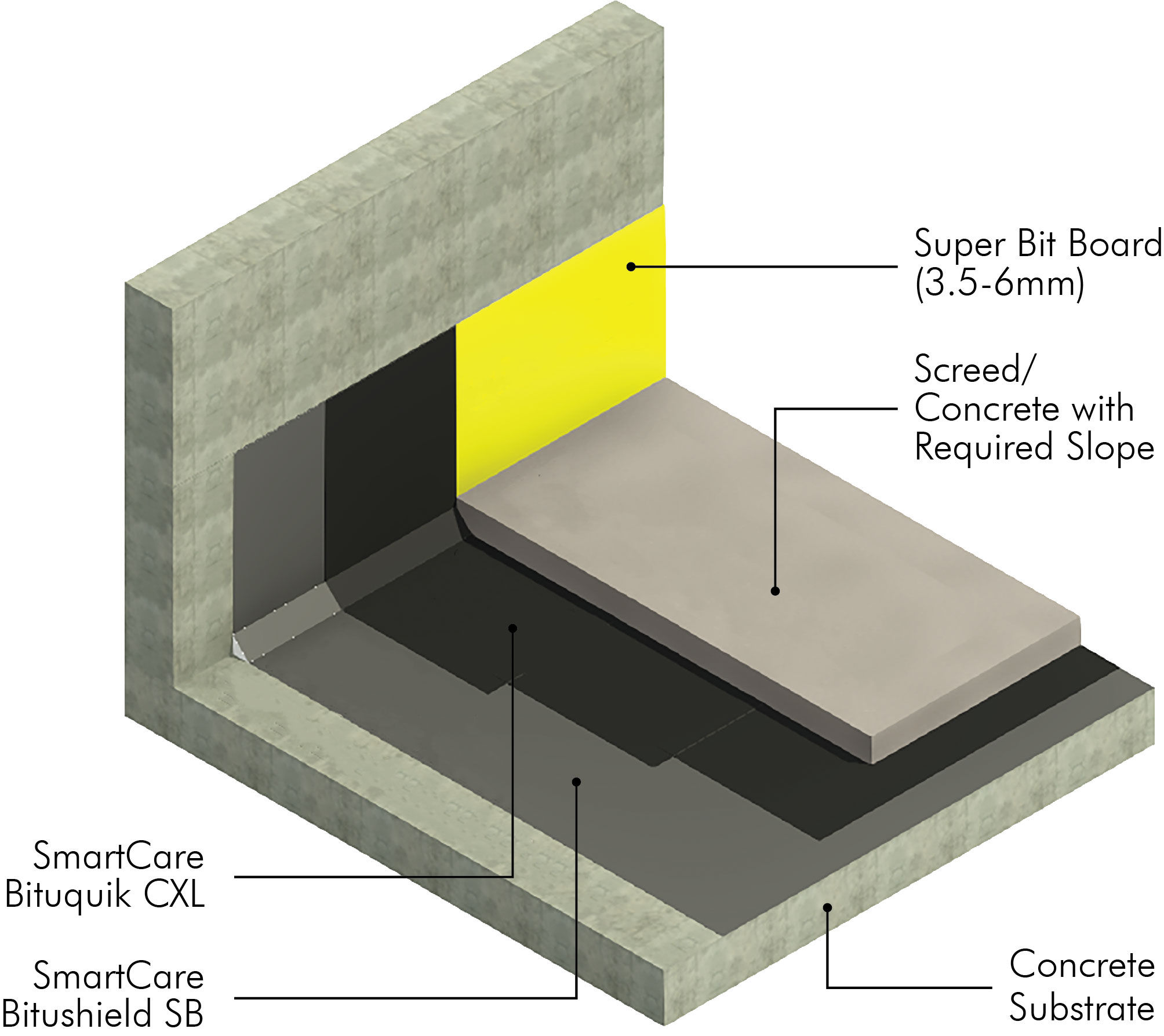

/content/dam/professionals/images/system/Cross Laminated SBS Membrane System (Self Adhesive)  (SmartCare Bituquik CXL).jpg

System Properties

 1.0kg/m² Icon
1.0kg/m²
Mass per unit area (ASTM D 5147)
 >102°C Icon
>102°C
Softening point(ASTM D 36)
 230 N Icon
230 N
Puncher resistance(ASTM E154)
 12.8N/mm² Icon
12.8N/mm²
Tensile strength(EN 12311-1) Longitudinal
 8.6 N/mm² Icon
8.6 N/mm²
Tensile Strength Transverse
 170% Icon
170%
Elongation (ASTM D 882 -18)
 357% Icon
357%
Tear strength (ASTM D 5147)
 >2.5mm Icon
>2.5mm
Crack bridging ability (ASTM D570-98)
 1.9 N/mm² Icon
1.9 N/mm²
Adhesion to primed concrete (ASTM D-1000)
