Apcoflor ESD
System Description:
Apcoflor ESD SL Topcoat is a specialised epoxy flooring system formulated with conductive fillers to deliver static‑dissipative performance. Installed at a nominal thickness of 2 mm, it creates a seamless, smooth surface suitable for sensitive operational environments.
Designed to ensure consistent electrical resistance in accordance with standard test methods, the system supports precision equipment operation while remaining attractive, durable, and easy to maintain.
Key Features
- Electrostatic Control: Meets ANSI/ESD S20.20-2014 requirements, ensuring consistent static dissipative performance.
- Seamless & Hygienic: The non-porous surface prevents bacterial growth, making it ideal for cleanrooms and healthcare environments.
- High Durability: Offers superior abrasion, impact, & chemical resistance for long-lasting performance.
- Easy to Clean & Maintain: The smooth finish alLows for effortless cleaning and sanitization.
- Chemical & Solvent Resistance: Resists oils, acids, alkalis, and industrial cleaning agents.
- Strong Adhesion: Provides excellent bond to prepared concrete substrates for enhanced durability.

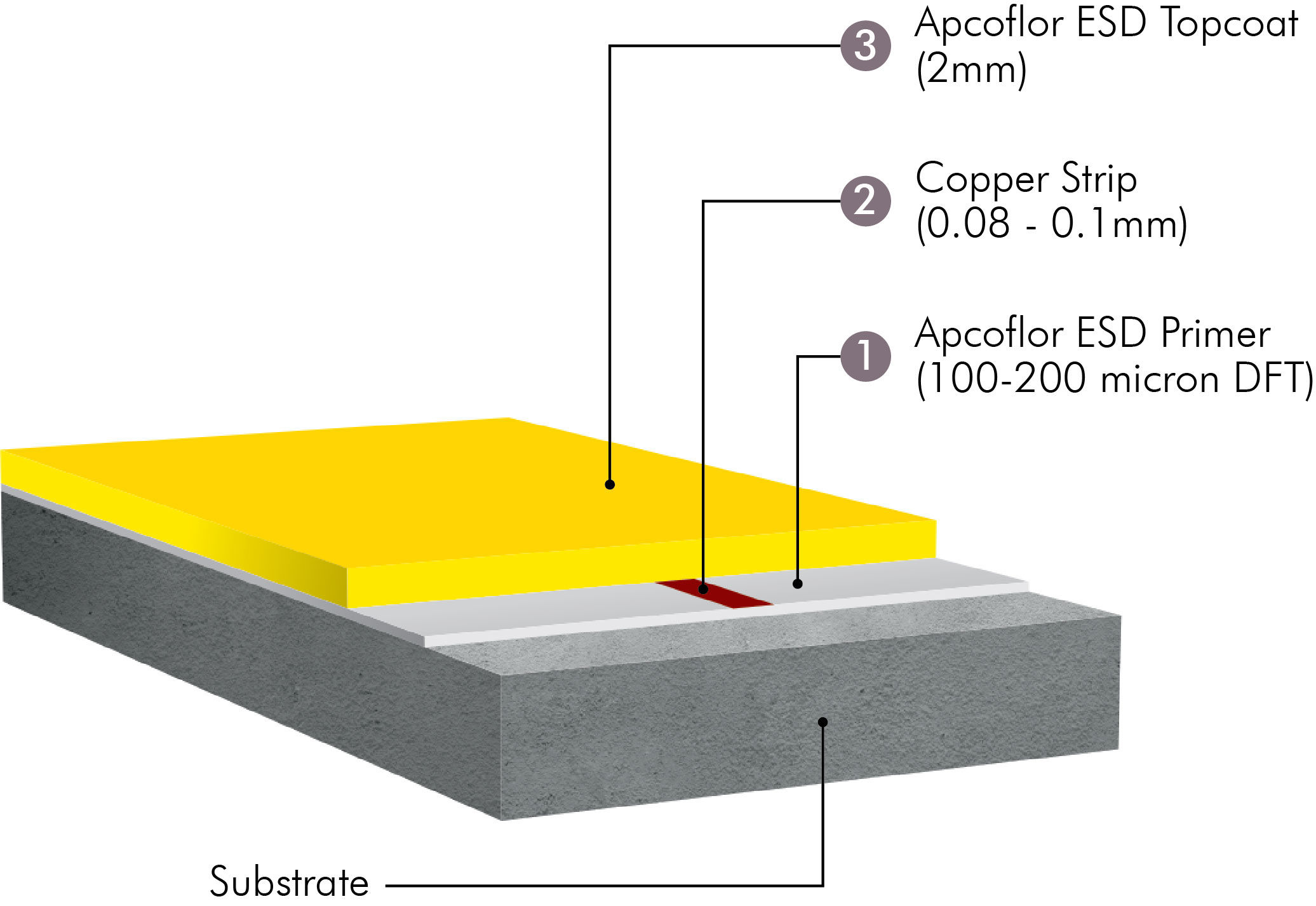

- ESD Conductive System: Utilizes a conductive primer & copper grid for effective electrostatic discharge
.jpg)
System Properties
Matt
Appearance
1.5mm
Recommended DFT/coat
Solid content (ISO 3233) 98±2%
1.56 kg/L
Density (mixed) (ASTM D 1475)
60 Mpa
Compressive strength (ASTM C 579)
Flexural strength (ASTM C 580) ≥ 33 Mpa
Tensile strength (ASTM C 307) ≥ 16 Mpa
1 x 10 to 10 Ohms
Surface to surface resistance (ANSI/ESD S20.20-2014)
< 2 Volts
Body voltage (ANSI /ESD S20.20-2014)
